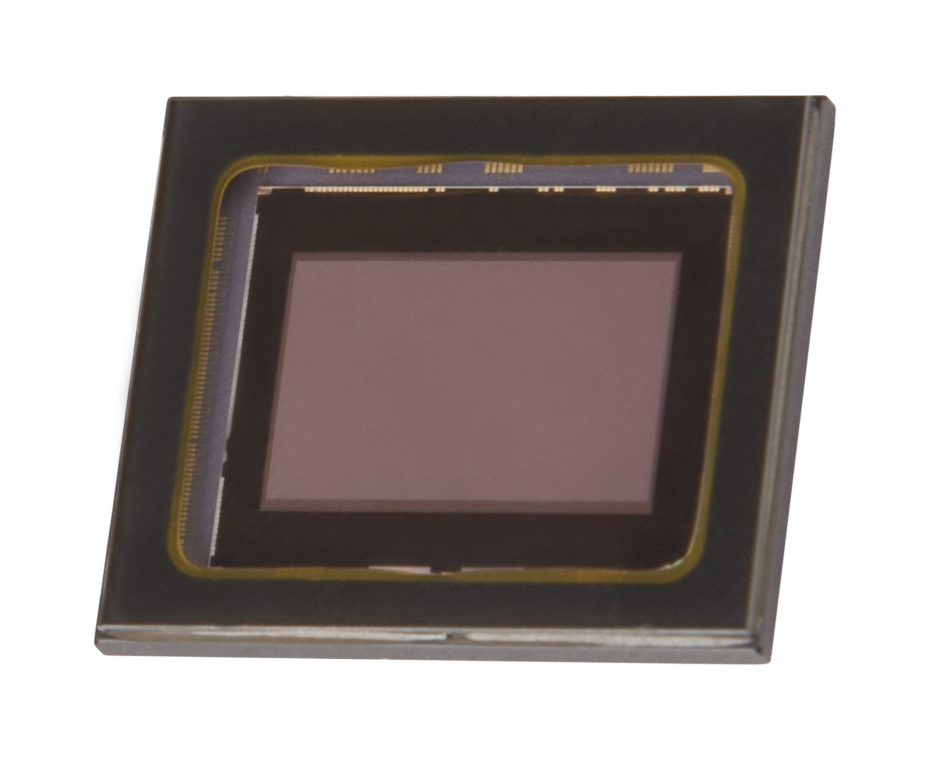

Sony Pregius IMX420LLJ-C

Sony Pregius IMX420LLJ-C

Produkt-Highlights:

HERSTELLER/LIEFERANT:

sony semiconductor logo

Produktübersicht

IMX420LLJ / 17.6 mm diagonal (Type 1.1) CMOS high speed image sensor with 7.10 M effective pixels / mono / 207 fps

Produktanwendungen

Produktspezifikationen

Bildsensortyp
Standard-CMOS-Bildsensor
Hersteller
Sony
Auflösung [MP]
7.06
Shutter-Typ
Global Shutter
Pixelgröße V=H [µm]
4.5
Bildgröße (Typ)
1.1
Seitenverhältnis
16:11
Max. Bildrate [fps]
207
Schnittstelle
SLVS, SLVS-EC
Color / Mono
Monochrome
Optische Diagonale / Format
Diagonal 17.6 mm (Type 1.1)
Effektive / Aufnahmepixel (H x V)
3216 x 2208
Bittiefe / ADC
8 Bit / 10 Bit / 12 Bit
Bildrate nach Bittiefe
207.1 fps @ 8-bit / 172.0 fps @ 10-bit / 134.5 fps @ 12-bit
Auslesemodus
Alle Pixel, H/V invertiert, usw.
Varianten / Teilenummer
IMX420LLJ-C – monochrome
Gehäuse
226 pin LGA
Spannungsversorgung
analog 3.3 V / digital 1.2 V / interface 1.8 V
Technologie
Pregius
Hauptfunktionen
2 × 2 Vertical FD binning, all-pixel scan, CDS/PGA, normal/inverted readout, recommended exit pupil distance –100 mm to –∞, recommended lens F number 2.8 or more, ROI, SLVS, vertical/horizontal 1/2 subsampling
Lebenszyklus
Aktiv
