Sony Pregius S IMX487AAMJ-C

IMX487AAMJ / 11.1 mm diagonal (Type 2/3) CMOS high speed image sensor with 8.13 M effective pixels / mono / 194 fps / Quad Power Supply / High UV sensitivity

Produkt-Highlights:

  • UV image sensor optimized for the 200–400 nm ultraviolet waveband
  • Approx. 8.13 MP resolution with square 2.74 μm pixels
  • Global shutter technology
  • Up to 194 fps output with SLVS-EC interface support
  • High UV sensitivity with low dark current for demanding industrial applications

HERSTELLER/LIEFERANT:

sony semiconductor logo

Produktübersicht

IMX487 is an image sensor with UV imaging capability while its Pregius S™ technology facilitates the global shutter function and high speed operation. It is adaptable to a wide range of use cases such as, apart from the typical semiconductor pattern inspection, material sorting at a recycling plant, inspection of micro-defects on product surfaces, and infrastructure inspections as well as in life science.

Produktanwendungen

UV imaging reveals surface features and material properties that are not visible in the standard spectrum, making it valuable for inspection and analysis tasks.

  • Semiconductor and wafer inspection
  • PCB inspection (e.g. flux residue detection)
  • Surface defect detection on polished or coated materials

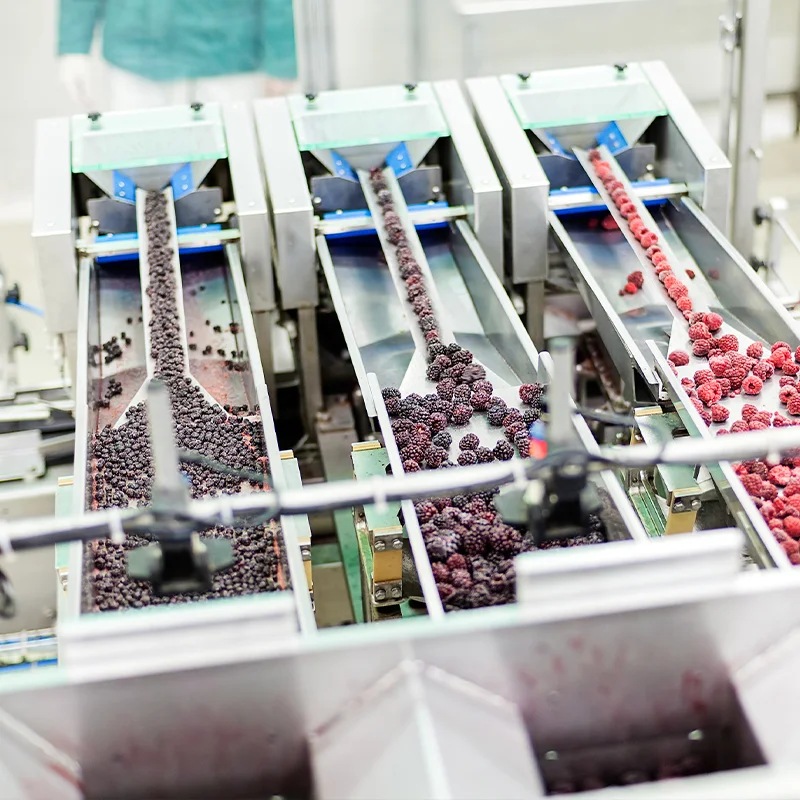

  • Material sorting in recycling and waste management
  • Glass and plastic differentiation
  • Infrastructure inspection (crack, coating, and material degradation analysis)
  • Forensic and contamination detection
  • Industrial quality control and microdefect inspection

Produktspezifikationen

Bildsensortyp
UV-Bildsensor
Hersteller
Sony
Auflösung [MP]
8.13
Shutter-Typ
Global Shutter
Pixelgröße V=H [µm]
2.74
Bildgröße (Typ)
2/3
Seitenverhältnis
1:1
Max. Bildrate [fps]
194
Schnittstelle
SLVS, SLVS-EC
Color / Mono
Monochrome
Optische Diagonale / Format
Diagonal 11.1 mm (Type 2/3)
Effektive / Aufnahmepixel (H x V)
2856 x 2848
Bittiefe / ADC
8 Bit / 10 Bit / 12 Bit
Bildrate nach Bittiefe
194.0 fps @ 8-bit / 193.6 fps @ 10-bit / 127.2 fps @ 12-bit
Auslesemodus
Alle Pixel, H/V invertiert, usw.
Varianten / Teilenummer
IMX487-AAMJ – UV monochrome
Gehäuse
230 pin LGA 20.0 mm (H) × 16.8 mm (V)
Spannungsversorgung
analog 3.3 V / 2.9 V / digital 1.1 V / interface 1.8 V
Technologie
Pregius S
Hauptfunktionen
double-sided AR glass, pulse output, SLVS, UV waveband sensor (200 nm to 400 nm), variable-speed shutter, various subsampling/readout modes
Lebenszyklus
Aktiv

Produktdownloads

Download product flyer by clicking here.

Fordern Sie ein Angebot an oder lassen Sie sich bei der Komponentenauswahl für Ihr Projekt unterstützen

Unser Engineering-Team unterstützt Entwickler bei der Evaluierung von Technologien, der Auswahl von Komponenten und der Systemintegration.
